MIL-T-81778C(AS)
activated, the load side of all LFTS primary circuit breakers shall be discon-
nected from the respective loads. The switches utilized for this application
shall be of the pushbutton-activated, momentary type with the pushbutton
finished in red. The front panel area around the pushbutton shall be marked
with alternating orange-yellow and black stripes. A switch shall be centrally
located on the LFTS in an area which is easily accessible to the operator
during normal operation and another switch shall be located on the antenna
mounting stand.
3.2.8 Calibration cycle. Applicable.
3.2.9 Power switching and coolant control. The LFTS shall provide the
necessary switching to control power forms of 3.2.2 and baffling as required
for control of coolants of 3.2.2.
3.2.10 Displays. Visual displays shall provide an indication of the test
status of the unit under test and the LFTS.
3.3 Performance.
3.3.1 General. The LFTS shall provide the capability to test and maintain
.
.
the equipment listed in Table IV. `
3,3.2 Organizational level functional requirements.
Not applicable.

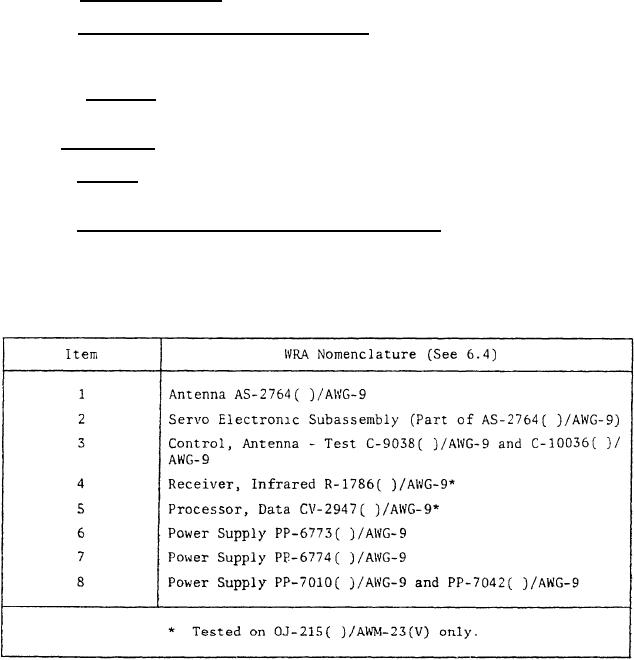

TABLE IV
WRAs MAINTAINED AT THE LFTS
-9-
